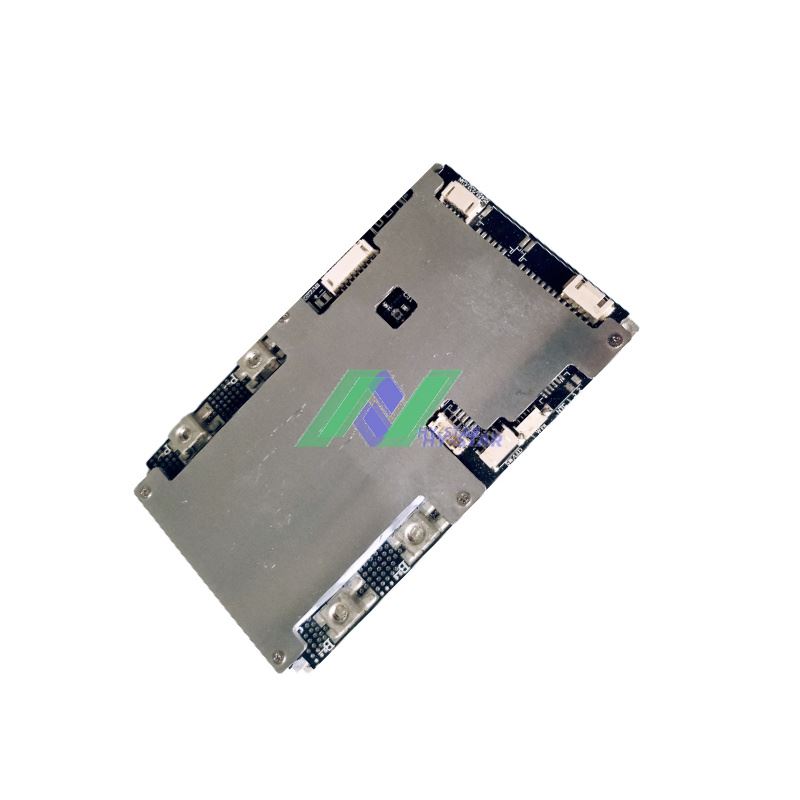

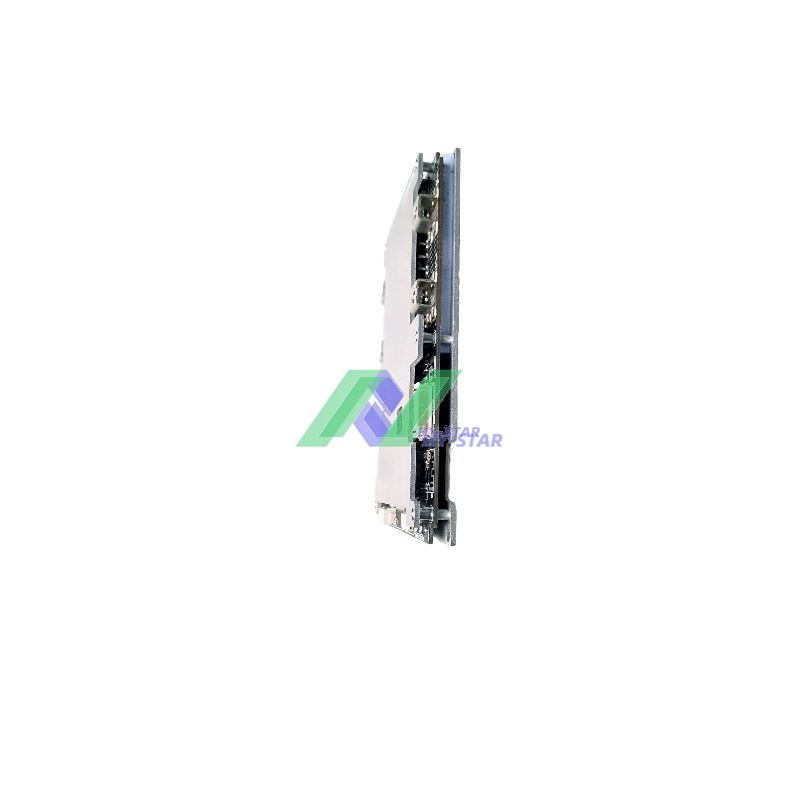

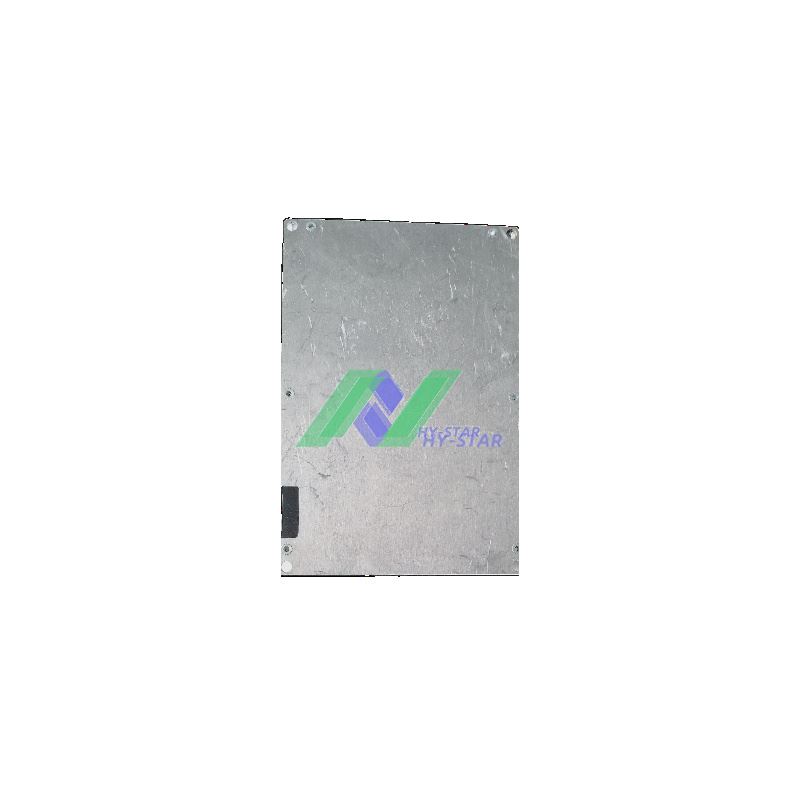

1. 3 - 16 series BMS protection board, separate port/same port (can be connected to mobile APP and computer host computer)
2. Dimensions: 150x100x22mm (including heat sink, terminal block, MOS layout on both sides of PCB)
3. 3 - 16 series, continuous charge and discharge of 100A
4. Isolated RS485 / Isolated RS232 / Isolated UART (choose one of the three)
5. Isolated one - wire communication, isolated CAN (independently optional)
6. Built - in Bluetooth / can be externally connected to an LCD display, and power supply is provided (independently optional)
7. Can be connected to 4, 5, 6 - light LED power display board (independently optional)
8. Low - temperature charging pre - heating function of the battery pack (independently optional)
9. Can add a battery pack parallel constant - current charging module (independently optional)
10. 4G remote data module (independently optional)

Application scope: robots, solar energy, vehicle - mounted inverters, low - speed vehicles, RV energy - storage batteries, electric forklifts, etc.
